21. Analog Scaling for PLC Technicians ( 21 of 35 )

In PLC programming, not all logic is simple ON/OFF control.

Sometimes the PLC needs to work with numbers.

The PLC may need to:

Move a value from one tag to another
Compare a process value to a setpoint
Add production counts
Subtract reject counts
Multiply a raw value for scaling
Divide values for calculations
Calculate speed, totals, or percentages

These operations are handled with data move, comparison, and math instructions.

According to Programmable Logic Controllers, 6th Edition, PLC data manipulation instructions include data transfer operations, data compare instructions, numerical data I/O interfaces, closed-loop control, and math instructions such as addition, subtraction, multiplication, and division.

Why These Instructions Matter

Basic ladder logic uses contacts and coils.

Example:

If Start_PB is ON
Then Motor_Run_Command turns ON

But many industrial machines need more than ON/OFF logic.

Example:

If Tank_Level >= 90%
Then stop filling

Or:

If Box_Count = 12
Then index the case

Or:

Move Recipe_Speed_Setpoint into VFD_Speed_Command

That is where move, compare, and math instructions become important.

1. Data Move Instructions

A move instruction transfers a value from one location to another.

In Allen-Bradley PLCs, a common instruction is:

MOV

A MOV instruction copies a value from a source to a destination.

Simple idea:

Source Value → Destination Tag

Example:

MOV 50  VFD_Speed_Command

This means:

Move the value 50 into VFD_Speed_Command.

MOV Instruction Example

Imagine an operator selects a speed from the HMI.

HMI_Speed_Setpoint = 45.0 Hz

The PLC can move that value into the drive command tag:

MOV HMI_Speed_Setpoint  VFD_Speed_Command

Plain English:

Copy the operator speed setpoint into the VFD speed command.

This is common in VFD control, recipe systems, batch control, and HMI setpoint handling.

Where MOV Is Used

MOV instructions are commonly used for:

Recipe values
HMI setpoints
Default values
Batch quantities
Speed commands
Preset values
Timer presets
Counter presets
Analog output commands
Status codes
Fault codes

Example:

MOV 10  Box_Counter.PRE

This could load a preset of 10 boxes into a counter.

Another example:

MOV Fault_Code  HMI_Fault_Display

This could move a fault code into a tag that the HMI displays.

2. Compare Instructions

Compare instructions allow the PLC to compare values.

The PLC can check if one value is:

Equal to another value
Not equal to another value
Greater than another value
Less than another value
Greater than or equal to another value
Less than or equal to another value

Common comparison instructions include:

EQU — Equal

The EQU instruction is true when two values are equal.

Example:

Box_Count = 12

Plain English:

If Box_Count equals 12, then the condition is true.

Use case:

If 12 bottles are counted, turn on Batch_Complete.

Logic concept:

EQU Box_Counter.ACC 12 → Batch_Complete

NEQ — Not Equal

The NEQ instruction is true when two values are not equal.

Example:

Current_Recipe_Number <> Last_Recipe_Number

Plain English:

If the current recipe is different from the last recipe, do something.

Use case:

If recipe changed, load new setpoints.

GRT — Greater Than

The GRT instruction is true when one value is greater than another.

Example:

Tank_Level > 90%

Plain English:

If tank level is greater than 90%, stop filling.

Use case:

High level control
Pressure limit
Speed limit
Temperature warning

LES — Less Than

The LES instruction is true when one value is less than another.

Example:

Air_Pressure < 60 PSI

Plain English:

If air pressure is less than 60 PSI, create a low air fault.

Use case:

Low pressure alarm
Low tank level
Low temperature condition
Low speed detection

GEQ and LEQ

These are very common in process control.

GEQ — Greater Than or Equal

Example:

Tank_Level >= 90%

Meaning:

Tank level has reached or passed 90%.

LEQ — Less Than or Equal

Example:

Tank_Level <= 10%

Meaning:

Tank level is at or below 10%.

These instructions are often better than exact equality when working with analog values.

Important Note About Analog Values

With analog signals, avoid relying only on exact equality.

Bad idea:

If Pressure = 50.0 PSI

Why?

Because analog values may fluctuate:

49.8
50.1
49.9
50.2

Better idea:

If Pressure >= 50.0 PSI

Or use a range:

Pressure >= 49.5 AND Pressure <= 50.5

Analog values are not always perfectly stable.

3. LIM — Limit Test

A LIM instruction checks if a value is within a range.

Example:

Tank_Level between 20% and 80%

Plain English:

If the tank level is inside this range, the condition is true.

Use cases:

Safe operating range
Temperature band
Pressure window
Speed tolerance
Position range
Acceptable weight range

Example:

If Weight is between 990g and 1010g
Then Product_Weight_OK = ON

This is very useful in real machines.

Practical Compare Example: Tank Filling

Inputs / Values

Tank_Level_Percent
Fill_Setpoint = 90%
Low_Level_Setpoint = 10%

Logic

If Tank_Level_Percent < 90%
Then allow filling

If Tank_Level_Percent >= 90%
Then stop filling

If Tank_Level_Percent <= 10%
Then low level alarm

This is a simple example of how compare instructions control a process.

4. Math Instructions

Math instructions allow the PLC to calculate values.

Common math instructions include:

ADD — Addition

ADD adds two values together.

Example:

Good_Count + Reject_Count = Total_Count

Use case:

Calculate total production
Add batch totals
Increment totals
Combine counts

Example:

ADD Good_Count Reject_Count Total_Produced

Plain English:

Good parts plus rejected parts equals total parts processed.

SUB — Subtraction

SUB subtracts one value from another.

Example:

Total_Count - Reject_Count = Good_Count

Use case:

Calculate remaining quantity
Calculate good production
Calculate material used
Subtract rejected items

Example:

SUB Batch_Target Box_Counter.ACC Boxes_Remaining

Plain English:

Batch target minus current count equals boxes remaining.

MUL — Multiplication

MUL multiplies values.

Example:

Counts × Scale_Factor = Engineering_Value

Use case:

Analog scaling
Encoder distance calculation
Production rate calculation
Speed conversion
Unit conversion

Example:

MUL Encoder_Count Counts_Per_Inch Position_Inches

DIV — Division

DIV divides one value by another.

Example:

Total_Count ÷ Minutes = Parts_Per_Minute

Use case:

Production rate
Average values
Scaling
Speed calculation
Process ratio

Example:

DIV Parts_Count Runtime_Minutes Parts_Per_Minute

Plain English:

Calculate production rate.

5. CPT — Compute Instruction

The CPT instruction allows a formula or expression to be calculated in one instruction.

Example:

Scaled_Value = ((Raw_Value - Raw_Min) × (EU_Max - EU_Min) / (Raw_Max - Raw_Min)) + EU_Min

This is common in analog scaling.

CPT can make formulas easier to write, but it should be documented clearly.

Practical Math Example: Production Rate

Situation

A conveyor counted 300 boxes in 10 minutes.

The PLC needs to calculate boxes per minute.

Parts_Per_Minute = Box_Count / Runtime_Minutes

Example:

300 / 10 = 30 boxes per minute

This value can be shown on the HMI.

Practical Math Example: Boxes Remaining

Situation

A case needs 24 bottles.

The counter currently has 18 bottles.

Boxes_Remaining = Batch_Target - Current_Count

Example:

24 - 18 = 6 bottles remaining

This helps the HMI show useful operator information.

6. Data Types Matter

When using move, compare, and math instructions, data types matter.

Common data types include:

Example:

Counter.ACC is usually an integer-type value.
Analog scaled pressure may be a REAL.
A motor command is usually a BOOL.

Be careful when mixing data types.

Example:

DINT value moved into REAL tag
REAL value used in integer math
Division result rounded unexpectedly

These issues can create confusing results.

7. MOV vs Math Instructions

A MOV instruction does not calculate.

It only copies.

Example:

MOV 100 Speed_Command

This means:

Speed_Command becomes 100.

A math instruction calculates.

Example:

MUL Speed_Percent Max_Hz Speed_Command

This means:

Speed_Command is calculated from Speed_Percent and Max_Hz.

Simple rule:

MOV copies a value.
Math calculates a value.
Compare makes a decision.

8. Compare Instructions in Fault Logic

Compare instructions are very useful for fault detection.

Low Air Pressure Fault

If Air_Pressure < 60 PSI
Then Low_Air_Pressure_Fault = ON

High Temperature Fault

If Temperature > 180°F
Then High_Temperature_Fault = ON

Weight Out of Range

If Weight < Minimum_Weight
OR Weight > Maximum_Weight
Then Weight_Fault = ON

Motor Speed Feedback Fault

If Motor_Command = ON
AND Actual_Speed < Minimum_Running_Speed
After timeout
Then Motor_Speed_Fault = ON

These are practical industrial uses.

9. Move Instructions in Recipe Control

Recipe systems commonly use MOV instructions.

Example: A machine has different product sizes.

Recipe 1

Speed_Setpoint = 35 Hz
Fill_Time = 4.5 sec
Target_Count = 12

Recipe 2

Speed_Setpoint = 45 Hz
Fill_Time = 3.0 sec
Target_Count = 24

When the operator selects a recipe, the PLC moves the correct values into active setpoints.

Example:

MOV Recipe1_Speed Active_Speed_Setpoint
MOV Recipe1_Count Active_Target_Count
MOV Recipe1_FillTime Active_FillTime

This is very common in packaging and process machines.

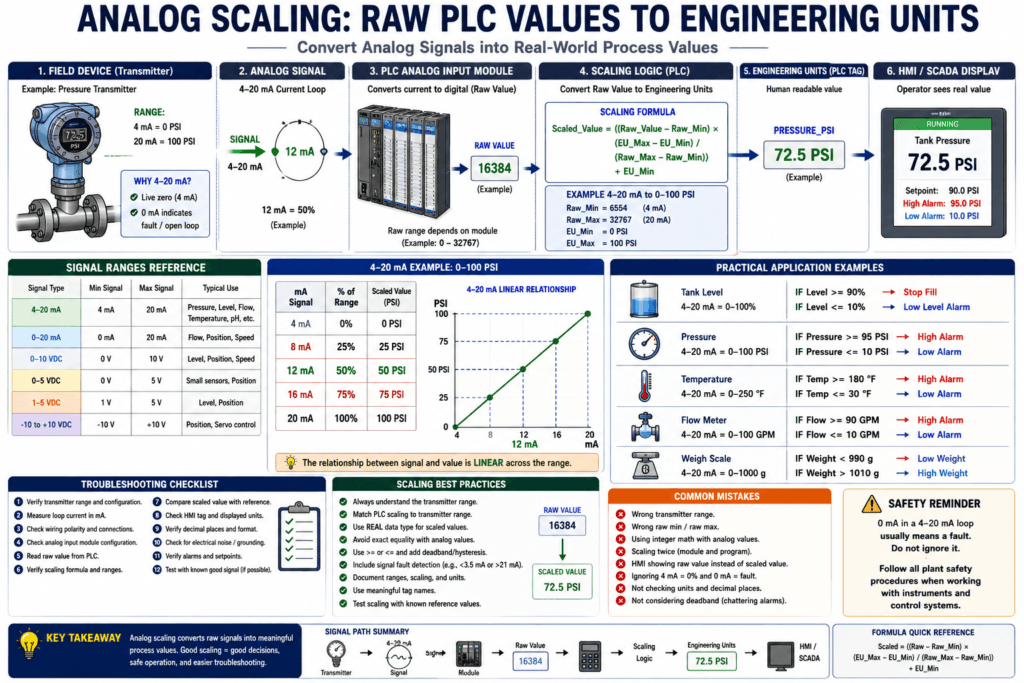

10. Math Instructions in Analog Scaling

Analog scaling is one of the most important uses of math instructions.

Example:

4–20 mA = 0–100 PSI

The PLC may receive a raw value and convert it into engineering units.

Simple concept:

Raw Analog Value → Math Scaling → PSI / GPM / °F / %

Example:

Raw input = 50%
Scaled pressure = 50 PSI

This connects directly to process control and instrumentation.

Common Mistakes

1. Comparing Analog Values with EQU

Avoid this:

EQU Pressure 50.0

Better:

GEQ Pressure 50.0

Or use a range:

Pressure >= 49.5 AND Pressure <= 50.5

2. Moving the Wrong Data Type

Example:

MOV REAL_Value DINT_Tag

This may cause rounding or unexpected values.

Always check data types.

3. Divide by Zero

Division by zero can cause faults or invalid results.

Bad example:

Parts_Per_Minute = Parts_Count / Runtime_Minutes

If Runtime_Minutes = 0, this is a problem.

Better logic:

If Runtime_Minutes > 0
Then calculate Parts_Per_Minute

4. Overwriting Setpoints

A MOV instruction can overwrite an operator-entered value.

Example:

HMI_Setpoint = 50
MOV Default_Setpoint HMI_Setpoint

If this MOV runs every scan, the operator may not be able to change the setpoint.

This is a very common issue.

5. Math Running Every Scan When It Should Not

Some math should update continuously.

Other math should update only when an event happens.

Example:

Load recipe only when recipe selection changes.

Not every scan.

Use one-shots or change detection when needed.

Troubleshooting MOV Instructions

When a value keeps changing unexpectedly, check for MOV instructions.

Ask:

Is another rung moving a value into this tag?
Is the MOV instruction true every scan?
Is the HMI trying to write the same tag?
Is a recipe load overwriting the value?
Is a default value being loaded on startup?
Is the destination tag correct?

A MOV instruction can silently change values and confuse troubleshooting.

Troubleshooting Compare Instructions

When a condition is not turning ON, check:

What is the actual value?
What is the setpoint?
Is the instruction using >, <, >=, or <= correctly?
Is the value scaled correctly?
Is the value a REAL or DINT?
Is the comparison looking at the correct tag?
Is the value fluctuating around the setpoint?

Example:

Tank_Level = 89.8%
Setpoint = 90%
GEQ is false

That may be correct behavior.

Troubleshooting Math Instructions

When a calculated value looks wrong, check:

Are the source values correct?
Are the data types correct?
Is scaling correct?
Is division by zero possible?
Is the destination tag correct?
Is the formula correct?
Is the instruction being scanned?
Is another rung overwriting the result?

Math logic should always be documented clearly.

Automation Technician Notes

For an Automation Technician, move, compare, and math instructions are important because they explain why the PLC makes numeric decisions.

Do not only check if a bit is ON or OFF.

Also check:

What is the value?
What is the setpoint?
What is the comparison result?
What value is being moved?
What calculation is being performed?
What is the destination tag?
Is another instruction overwriting it?

A machine may not be faulted because of a bad sensor. It may be faulted because the scaled value, setpoint, or compare instruction is not behaving as expected.

Practical Example: VFD Speed Command

Situation

The operator enters speed percentage on the HMI.

HMI_Speed_Percent = 60%

The PLC needs to convert that into a VFD speed command.

If maximum speed is:

Max_Speed = 60 Hz

Then:

VFD_Speed_Command = 60% × 60 Hz = 36 Hz

Logic idea:

Speed_Percent / 100 × Max_Speed = Speed_Command_Hz

Then the PLC sends the speed command to the VFD.

This uses:

MOV
DIV
MUL
Compare limits
Analog output or network command

Practical Example: Weight Check

Situation

A filling machine must verify product weight.

Target Weight = 1000 g
Minimum Weight = 990 g
Maximum Weight = 1010 g

Logic

If Actual_Weight >= 990
AND Actual_Weight <= 1010
Then Weight_OK = ON

If not:

Weight_Fault = ON

This is a clear use of comparison instructions.

Key Terms

Final Thoughts

Data move, compare, and math instructions allow a PLC to work with numbers, not just ON/OFF signals.

A PLC can move setpoints, compare process values, calculate production totals, scale analog signals, control VFD speeds, and make decisions based on real process data.

For an Automation Technician, these instructions are essential for troubleshooting modern machines.

The key rule is simple:

MOV copies values.
Compare instructions make decisions.
Math instructions calculate results.

Once you understand these instructions, PLC programs become much easier to read, especially when working with analog signals, recipes, counters, VFDs, and HMI setpoints.
