29. Motor Troubleshooting in Real Plants (29 of 41)

---

When a motor fails in a real plant, the problem is rarely just “the motor is bad”.

Most of the time the issue is somewhere in this chain:

PLC Logic → Wiring → Output Device → Field Device → Feedback → Process

So the real skill is not guessing.

It is isolating where the signal is lost.

---

1. The Golden Rule of Motor Troubleshooting

Always find the FIRST point where the signal fails.

Do NOT jump to replacing parts.

Instead follow this logic:

PLC → Output → Device → Field → Feedback

---

2. The 5 Layers of Motor Control

A motor system typically has 5 troubleshooting layers:

Layer 1 — PLC Logic

• Start command
• Permissives
• Interlocks
• Faults
• State machine

Layer 2 — Output Signal

• PLC output energized?
• DO card LED ON?

Layer 3 — Field Interface

• Relay
• Contactor coil
• VFD digital input

Layer 4 — Power Circuit

• Motor starter
• Overload relay
• VFD power stage

Layer 5 — Feedback

• Aux contact
• VFD run status
• Encoder / sensor

---

3. Case 1 — PLC Says RUN but Motor Does NOT Start

Symptom:

Motor_Run_Command = ON
Motor is OFF

---

Step-by-step:

✔ PLC Output Check

• Is DO energized?

✔ Field Device Check

• Is contactor pulling in?
• Is VFD receiving RUN?

✔ Power Check

• Is voltage present at motor starter?
• Is overload tripped?

---

Most common causes:

Blown fuse
Loose wiring
Bad relay
No 120/24V control power
VFD disabled
Overload tripped

---

4. Case 2 — Motor Starts Then Stops Immediately

Symptom:

Motor starts for 1–2 sec then stops

---

Likely causes:

🔴 Feedback problem

Motor_Run_Command ON
Feedback never arrives
→ PLC stops motor (fault logic)

🔴 Interlock triggers

Jam sensor ON
Downstream OFF
Safety drops

🔴 VFD fault

Overcurrent
Undervoltage
Drive faulted

---

5. Case 3 — Contactor Not Pulling In

Check sequence:

1. PLC Output

• Is bit ON?

2. Voltage at coil

• 24VDC / 120VAC present?

3. Coil condition

• Open coil?
• Burned coil?

4. Mechanical

• Stuck contactor?

---

Typical failure points:

Broken wire to coil
Blown fuse in control circuit
Bad output relay
Loose terminal
Burned contactor coil

---

6. Case 4 — VFD Does Not Start Motor

Check:

PLC side:

Run command = ON?
Permissives OK?
Fault bit active?

VFD side:

Drive in LOCAL or REMOTE?
Enable input present?
Fault code?
Run permissive satisfied?

---

Common VFD issues:

Parameter mismatch
Speed reference missing
Safety input open
Drive fault latched
Incorrect control mode (Local vs Remote)

---

7. Wiring Problems (MOST COMMON IN REAL PLANTS)

Many “PLC problems” are actually wiring problems.

Symptoms:

Signal flickers
Motor random stop
Intermittent faults
Input not stable

Causes:

Loose terminal
Broken conductor inside cable
Bad grounding
Noise from VFD
Shared neutral issues

---

8. PLC Logic Problems

Sometimes the issue is not field — it is logic.

Examples:

Missing permissive
Interlock stuck TRUE
Fault not reset
Wrong state machine transition
Duplicate output logic

Example:

Motor_Run_Command depends on:
- Safety_OK
- Permissive_OK
- NOT Fault

If Fault never clears → motor never runs

---

9. VFD vs Contactor Troubleshooting Difference

Contactor System:

Simple ON/OFF coil
Easy to check voltage
Mechanical wear common

VFD System:

Digital communication or inputs
Parameter issues common
Fault codes critical
Enable chain required

---

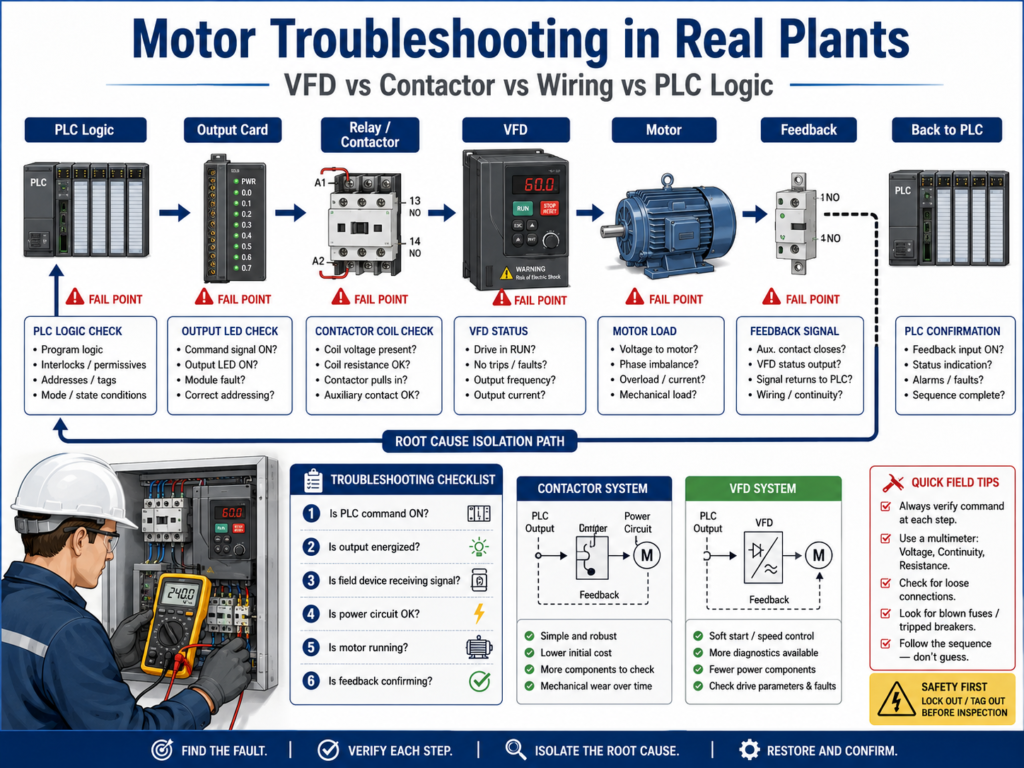

10. Fast Troubleshooting Method (REAL PLANT FLOW)

Use this every time:

1. Is PLC command ON?
2. Is output ON?
3. Is field device receiving signal?
4. Is power circuit OK?
5. Is motor running?
6. Is feedback confirming?

---

11. Example Full Breakdown

Problem:

Motor will not run

Step 1:

PLC: Motor_Run_Command = ON

Step 2:

Output LED ON = YES

Step 3:

Contactor coil = NO voltage

Conclusion:

Output wiring / fuse / relay issue
NOT PLC logic

---

12. Feedback = Most Ignored Problem

If feedback is wrong:

Motor may run but PLC thinks it stopped
OR
Motor stops but PLC thinks it is running

This creates false faults.

---

13. Key Technician Insight

80% of motor issues are NOT PLC programming problems.

They are:

Wiring
Power
Devices
Sensors
Field failures

---

14. Best Troubleshooting Strategy

Do not guess
Do not replace parts immediately
Follow signal path
Verify each layer
Isolate the first failure point

---

15. Technician Checklist

PLC command ON?
Output energized?
Voltage at device?
Device response?
Motor running?
Feedback correct?
Fault active?
Interlock blocking?
Wiring intact?
Power present?

---

Final Thoughts

Motor troubleshooting is not about replacing parts.

It is about following the signal like a detective:

PLC → Output → Device → Motor → Feedback

Once you master this, you can diagnose almost any industrial motor issue quickly and confidently.
