Motor Running vs Motor Feedback in PLC Ladder Logic

---

Never Trust the Command: Motor Running vs Feedback in PLC Ladder Logic

Introduction

In industrial automation, one of the most misunderstood concepts in motor control is the difference between a Motor Running command and Motor Feedback.

At first glance, both may appear to represent the same condition — that a motor is running. However, in real-world control systems, these signals serve completely different purposes, and confusing them can lead to unsafe or unreliable designs.

---

What is Motor Running (Command)?

The Motor Running bit (often named Motor_Run_CMD) is an internal PLC signal that represents the controller’s intention to run the motor.

It is generated by the control logic, typically from:

• Start/Stop push buttons
• Auto/Manual sequences
• Interlocks and permissives

👉 In simple terms:

Motor Running = What the PLC wants

---

What is Motor Feedback?

Motor Feedback (often named Motor_Running_FB) is a real-world signal that confirms whether the motor is actually running.

It usually comes from:

• Contactor auxiliary contacts
• Variable Frequency Drive (VFD) run status
• Overload relay auxiliary contacts

👉 In simple terms:

Motor Feedback = What is actually happening

---

Why This Difference Matters

Relying only on the command signal can create dangerous situations.

Example:

• PLC sends a run command
• Contactor fails or overload trips
• Motor does NOT run

Without feedback, the PLC would still assume the motor is running.

Command ≠ Reality

---

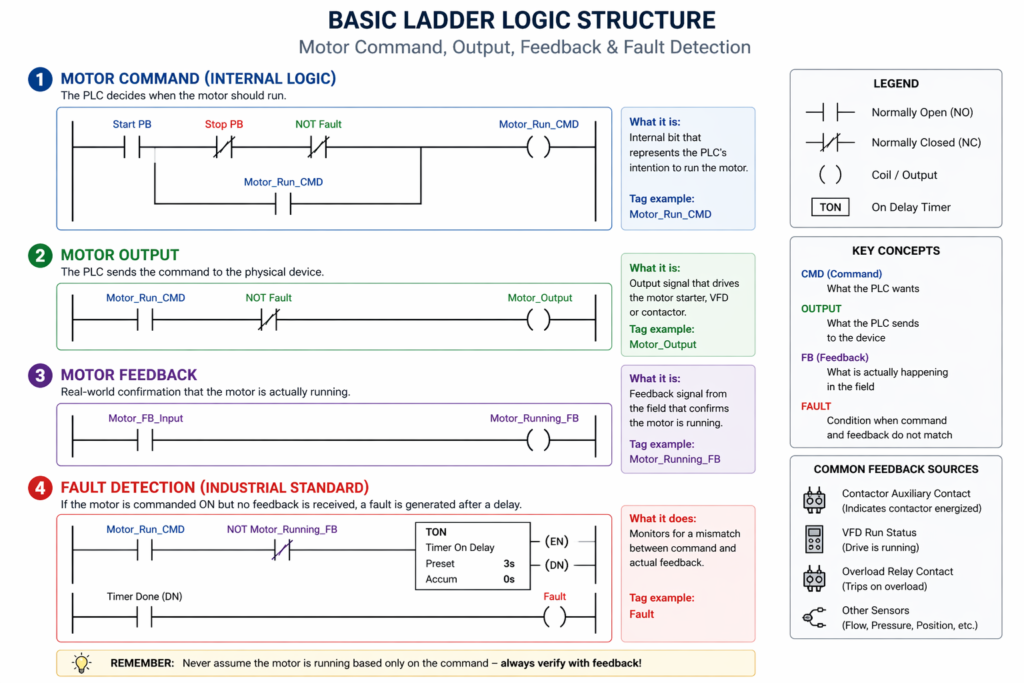

Basic Ladder Logic Structure

This logic ensures:

• The PLC commands the motor
• The system verifies real operation
• A fault is triggered if reality does not match the command

---

Standards Alignment (IEC & Rockwell Perspective)

While you may not find the exact terms “Motor_Run_CMD” and “Motor_Running_FB” explicitly defined in standards, the concept behind them is strongly supported by both IEC standards and Rockwell Automation practices.

IEC Standards

• IEC 61131-3 (PLC Programming)
  Promotes structured programming and clear separation between:
  • Inputs (field signals)
  • Internal variables (logic)
  • Outputs (actuators)
• IEC 60204-1 (Machine Safety)
  Requires monitoring and verification of machine states, meaning:Systems should confirm that commanded actions actually occur
• IEC 61508 (Functional Safety)
  Emphasizes diagnostics and fault detection:Command ON + No Feedback → Fault

---

Rockwell Automation (Allen-Bradley)

Rockwell systems (Studio 5000, PlantPAx, VFD integration) consistently apply this design pattern:

• Run Command → what the PLC requests
• Output → what is sent to the device
• Feedback → what the device confirms

👉 The controller is expected to:

Validate commands using real-world feedback signals

---

Common Mistakes

❌ Using Command for Sequencing

Motor_Run_CMD → Start Next Motor

✅ Correct Approach

Motor_Running_FB → Start Next Motor

Always base process decisions on actual system behavior, not assumptions.

---

Best Practices

• Separate Command, Output, and Feedback
• Never assume a motor is running without feedback
• Use timers to validate startup conditions
• Interlock outputs with fault conditions
• Use feedback for sequencing and dependencies

---

Final Thoughts

Understanding the difference between Motor Running and Motor Feedback is fundamental to building reliable industrial control systems.

The key principle is simple:

Never trust what you command — always verify with feedback.

---

Thanks for reading. More real-world automation insights coming soon.
